AC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator

Product Categories
YUEQING YOMIN ELECTRIC CO., LTD
Contact Now

AC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator

Brand Name : YOMIN

Model Number : TDGC2J-5K

Certification : ROSH

Place of Origin : China (Mainland)

MOQ : 1 piece

Price : USD 47.82-198.67/piece

Payment Terms : L/C, T/T, Western Union, D/A, D/P

Supply Ability : 190000 PCS/Month

Delivery Time : Within one week after payment.

Packaging Details : Within one week after payment.

Current Type : AC

Phase : Single phase

Product Name : Variac Voltage Regulator

Protection Degree : IP20

Usage : voltage regulator

Capacity/Power : 1500VA-60KVA

Color : Pale yellow

Insulation Class : A

Packing : Standard export packing

Voltage change rate : ±1%

Temperature rise : ≤60°C

Insulation resistance : ≥150MΩ

Electric strength : 2000VAC/1min

Contact Now

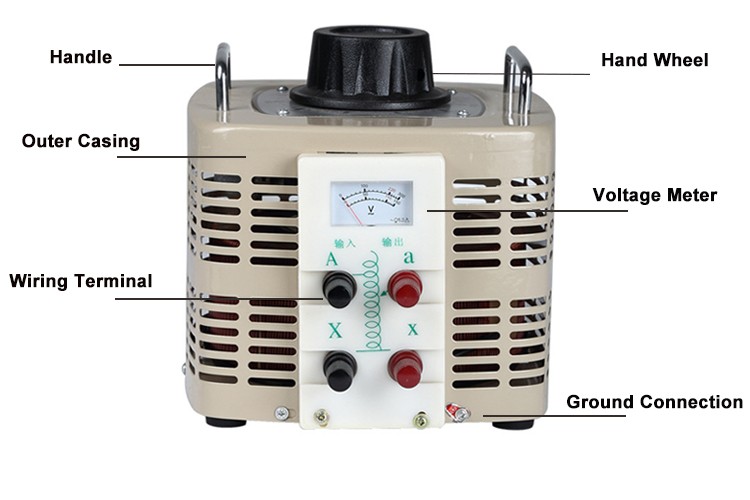

Made in China AC single phase TDGC2J-5K Analog Meter Display Voltage Regulator

Product description:

1.TDGC2 contact voltage regulator have beautiful appearance

2.This type contact voltage regulator have high efficiency

3.Contact voltage regulator without waveform

4. Contact voltage regulator have the characters of light weight, a convenient and reliable usage and a lasting running.

Our top quality contact voltage regulators have passed the certification of CE, ISO9001, FCC and ECM.

Rated products model of contact voltage regulator

Product parameters

Specifications Rated Capacity (KVA) Product Size (cm) Weight (kg) Table equipment

TDGC2J Single phase

 0.5 14×16×20 4.2 6
1 17×21×23 6.5 4
2 21×25×23 11.8 2
3 24×27×23 14.5 2
5 35×38×27 26 1
7 35×38×27 26.5 1
10 35×43×43 54 1
15 35×43×59 80 1
20 35×43×59 83 1
30 35×43×110 165 1
40 35×43×110 171 1

TSGC2J Three phase

 3 17×21×52 21 1
6 21×25×52 31 1
9 24×27×52 42 1
12 35×40×59 73 1
15 35×40×59 79 1
20 35×40×59 81 1
30 35×43×110 165 1
40 35×43×110 170 1
45 35×43×110 175 1
50 35×43×110 180

1

AC Single Phase TDGC2J-5K Analog Meter Display Voltage RegulatorAC Single Phase TDGC2J-5K Analog Meter Display Voltage RegulatorAC Single Phase TDGC2J-5K Analog Meter Display Voltage RegulatorAC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator
