4 Modules Small Size Single Phase Energy Meter 50A KWH LCD Display Din Rail

4 Modules Small Size Single Phase Energy Meter 50A KWH LCD Display Din Rail

Features :

1.Single direction measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

2. Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

3. Standard configuration 6+1 digits display (999999.1kWh). May select 5+2 digits display (Please specified when ordering).

4. Standard configuration short terminals cover, may select extension terminals cover, in order to protect
to use safety. (Product Configuration code is JF).

5. Two LED instructions respectively power supply state (green) and signal of energy impulse (red).

6. Standard configuration don’t detection direction of the flow of load current. May select automatic detection the direction of the flow of load current. And instructions by an individual LED.

7. 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board setting
(mounting holes center distance 63 mm), users can choose any one by themselves.

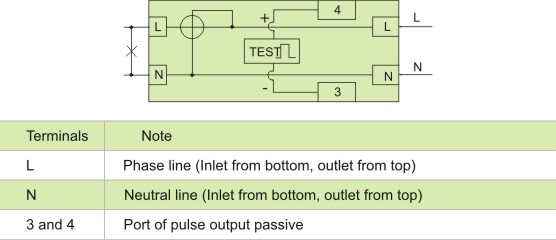

8. Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of connection, and use CT (Product Configuration code is IC) and PT & CT (Product Configuration code is HC) for operation.

9. Standard configuration Impulse output passive (polarity),May select distant impulse output passive (no
polarity). And contact with all kind of AMR system conveniently,complying with standard IEC 62053-31
and DIN 43864.

Decriptions :

• Model YEM011JC single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc.
• The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net.
• This meter has seven digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Specifications :

Transport and storage :

Transport and storage of the meter must not be shaken and must accord with ZBY002-81.The meter must be stored in the original packing box and the environmental temperature is in -20℃～＋55℃ .Relative humidity shall not exceed 95%. And there isn’t any corrosive gas. The environmental temperature shall not vary violently.The meters should be in the original packing box and the boxes should be piled up no more than five on the rack . The separate meter is not suitable for storage.

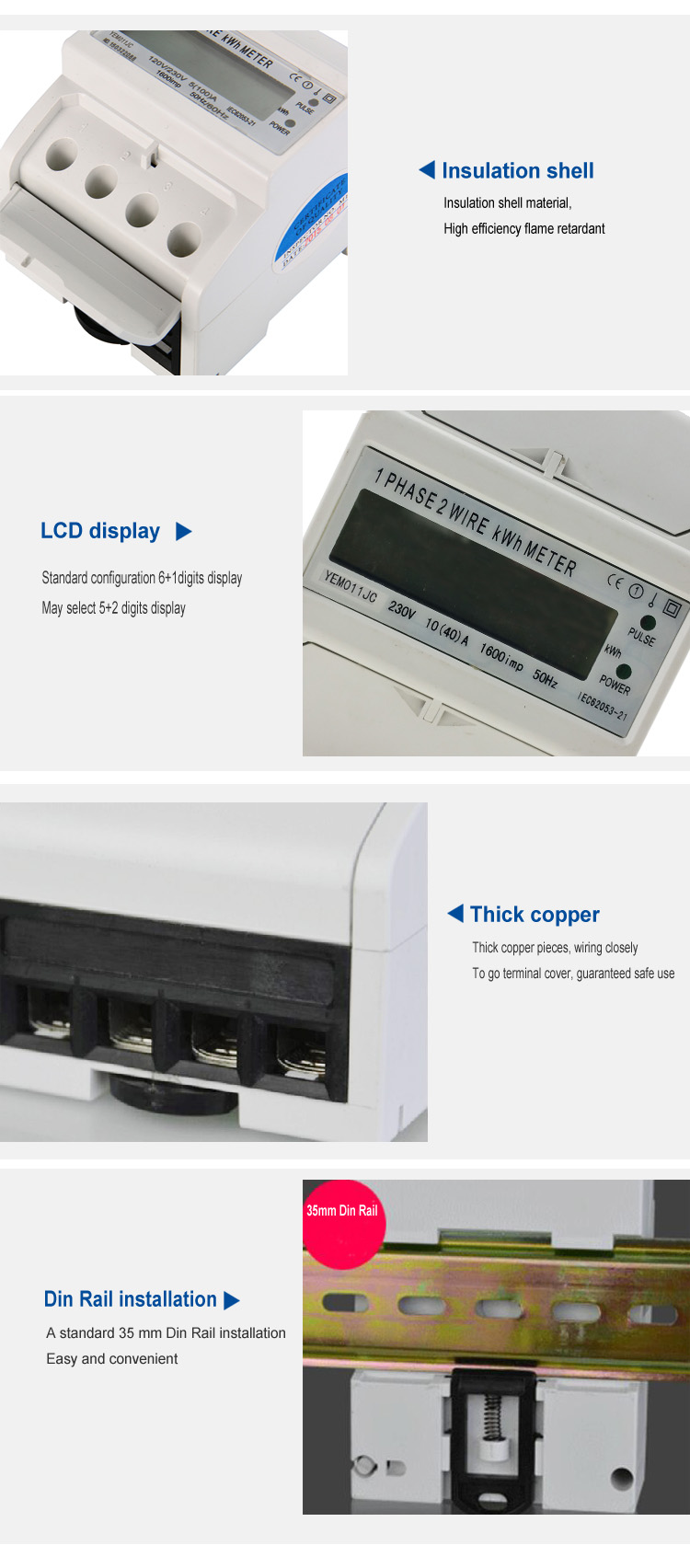

Detail :

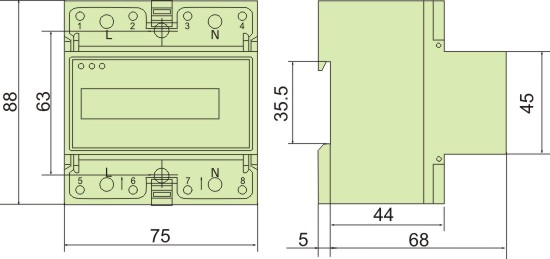

Dimensions:

din rail watt hour meter

din rail energy meter
