Compact design Low Voltage LV Current Transformers for Electronic

Name: Compact design Low Voltage LV Current Transformers for Electronic
Brand: YOMIN
Price: 1 USD

Compact design Low Voltage LV Current Transformers for Electronic Manufactures

Brand Name : YOMIN

Model Number : MES series

Certification : CE / RoHS

Place of Origin : Zhejiang , China ( Mainland )

MOQ : 50 Piece

Price : Negotiation

Payment Terms : L/C , T/T , Western Union , Paypal

Supply Ability : 1000 Pieces Per Week

Delivery Time : 5 - 20 working days after received your payment

Packaging Details : Export carton , 4 Pieces / Carton

Primary current : 100A-5000A

Secondary current : 5A, 1A

Usage : Electronic

key world : zero phase ct

Coil Structure : Toroidal

Burden : 2.5VA ~ 30VA

Rated voltage : 0.66kv and below

Rated security coefficient : Fs<5

Contact Now

200/5A class 0.5 Function Of Current Transformer / MES Low Voltage CT

Description :

The MES series of current transformer are convenient for mounting in many ways.The mostcurrent transformer need the special mounting and the MES series used the mounting of DIN typing without a lot of times.The protective cover for terminal block used the switching device with safety and quick.

Features:

Three built in fixing methods: Panel/Din Rail/Busbar

Built in hinged terminal cover

Compact design

Primary current from 5A to 3000A

Main Thecnical:

Rated Frequency: 50/60Hz

Rated Test voltage: 3kv AC(1min)

Rated short-time thermal current(Ith): 60In

Rated dynamic current(Idyn): 2.5Ith

Rated voltage (Um): 0.72Kv AC.

Continuous overload(Id): 1.2In

Operating Temp.: -10~+50℃

Housing self-extinguishing class: VO

Safety factor: FS5

Secondary Current: 5A/1A

Model	Rated Current(A) Primary/Secondary	Busbar Hole Dimension	Rated Burden(VA)	Accuracy Class	Rated Voltage(V)	Rated Frequency (Hz)
MES-62/30	30/5A-300/5A	30×10mm	2.5-5	1.0~0.5	720	50/60
MES-62/40	150/5A-600/5A	40×10mm	5	1.0~0.5	720	50/60
MES-30	30/5A-300/5A	30×10mm	2.5-5	1.0~0.5	720	50/60
MES-40	100/5A-600/5A	40×10mm	2.5-5	1.0~0.5	720	50/60
MES100	800/5A-3000/5A	100×30mm	10-30	5~20	720	50/60

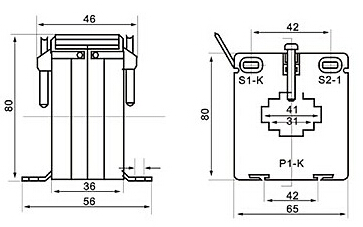

Dimensions (mm)

Model	A	B	C	D	E	F	G
MES-62/20	81	47	20	35	77	20	62
MES-62/30	81	47	30	35	77	31	62
MES-62/40	81	47	30	35	77	41	62
MES-80/30	88	52	30	41	77	31	80
MES-80/40	88	52	30	41	77	41	80
MES-100/60	117	57	50	184	77	61	101
